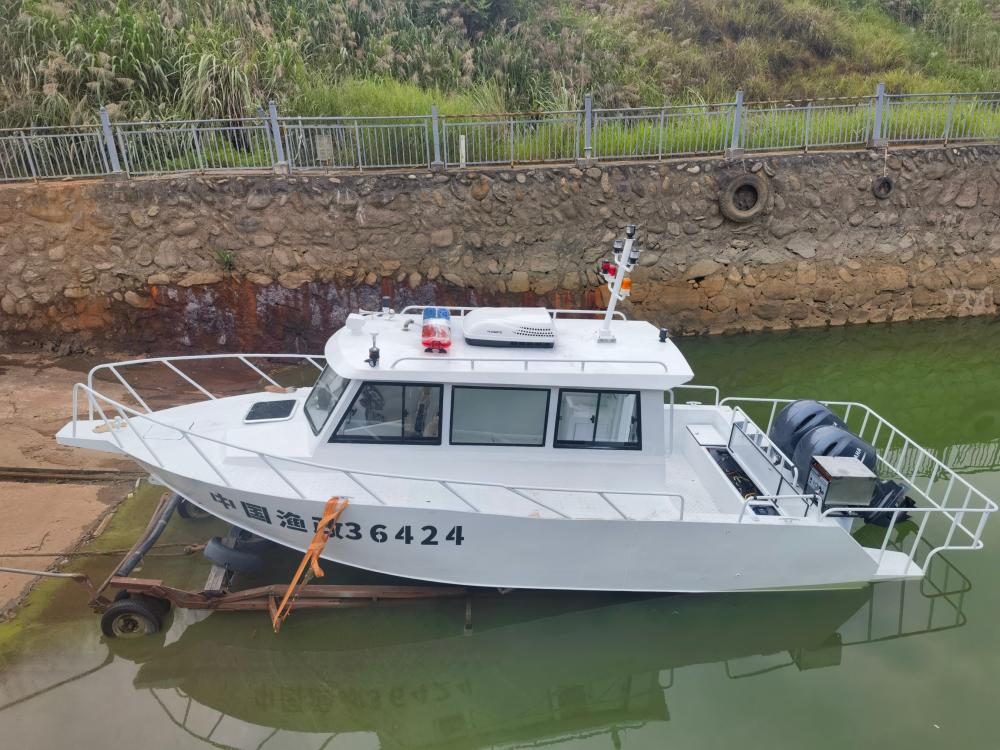

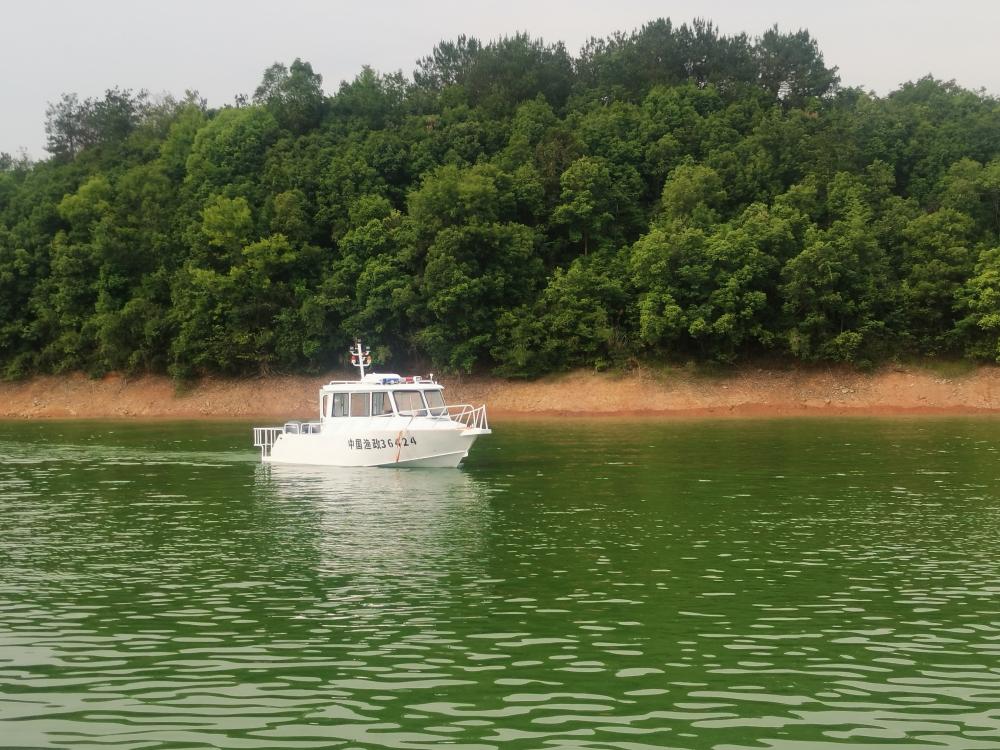

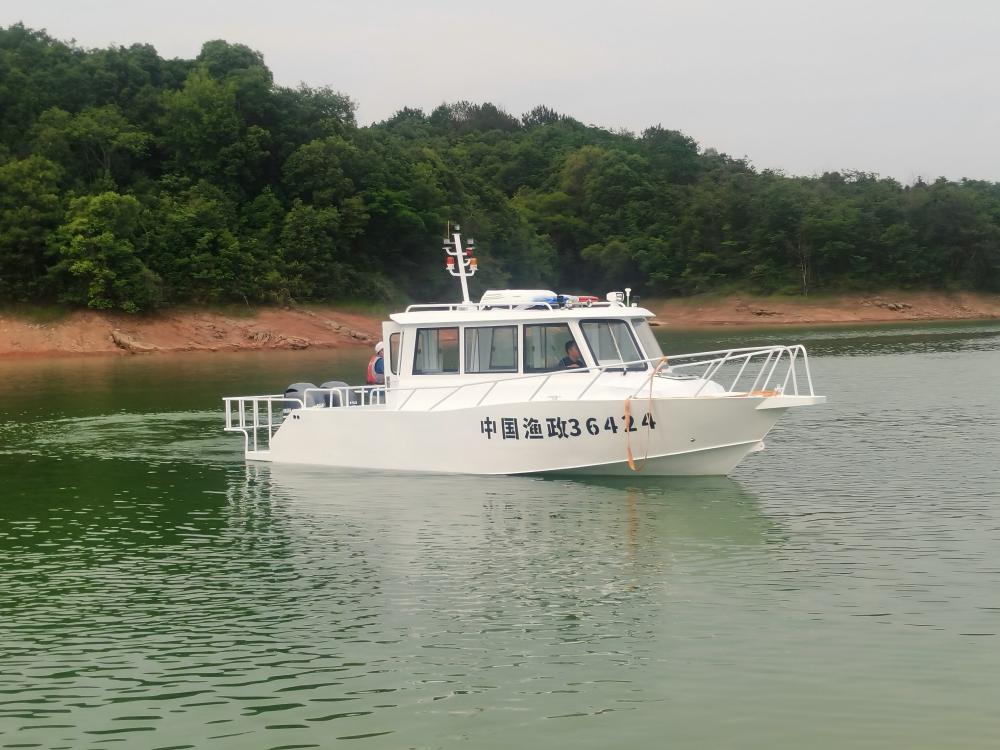

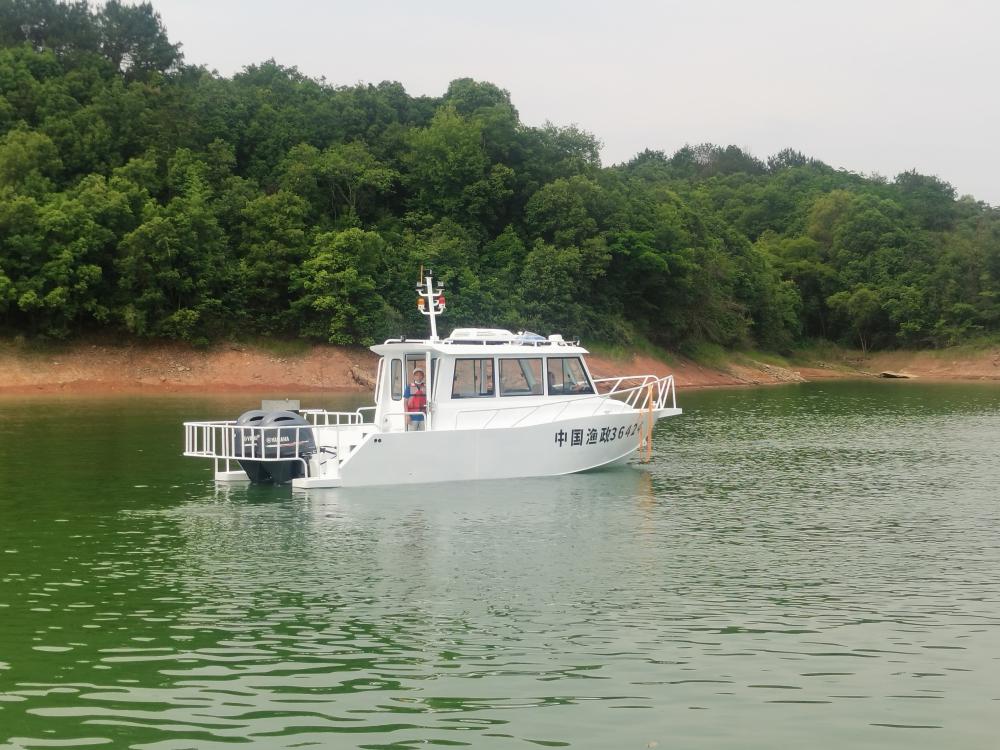

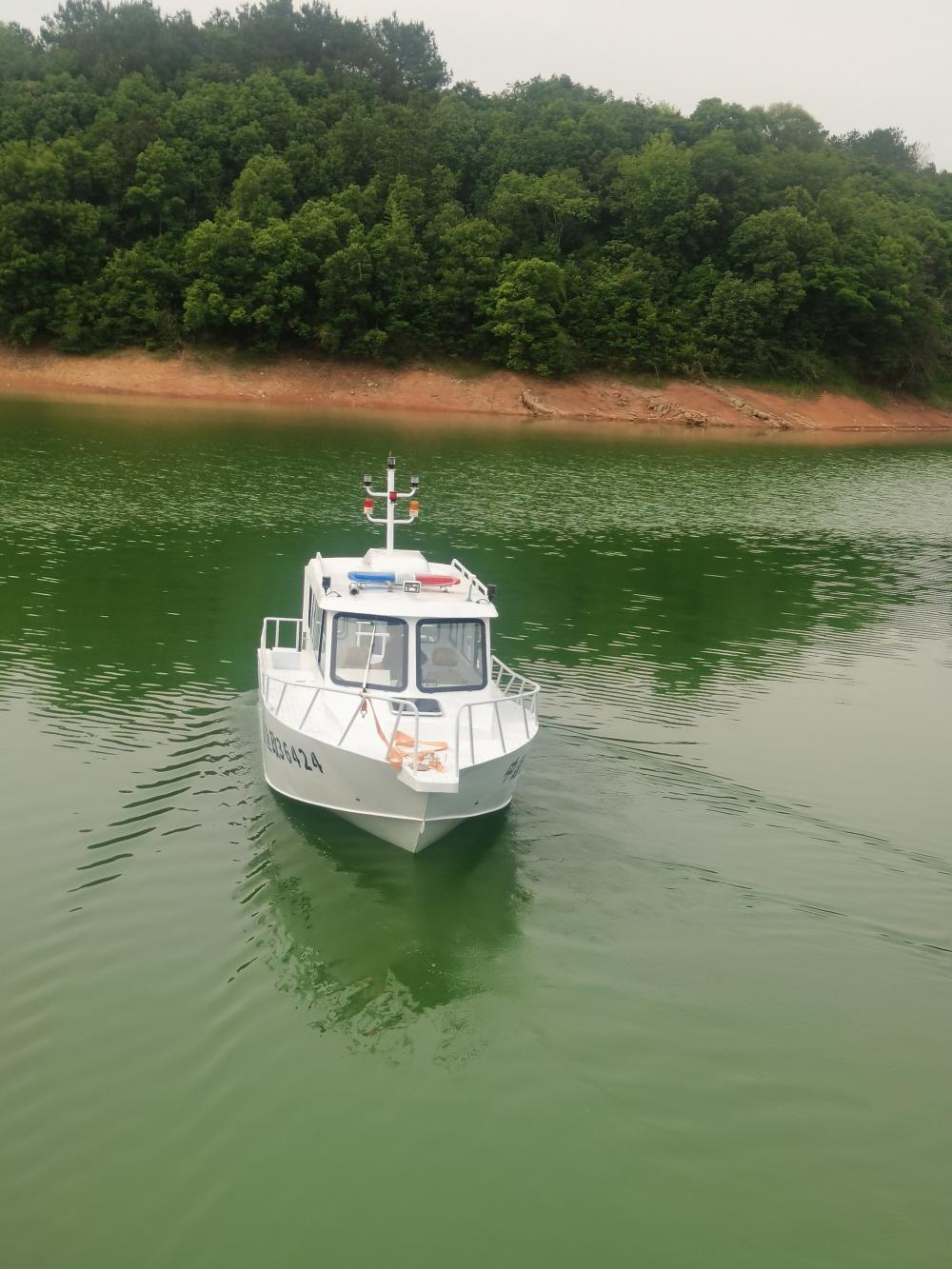

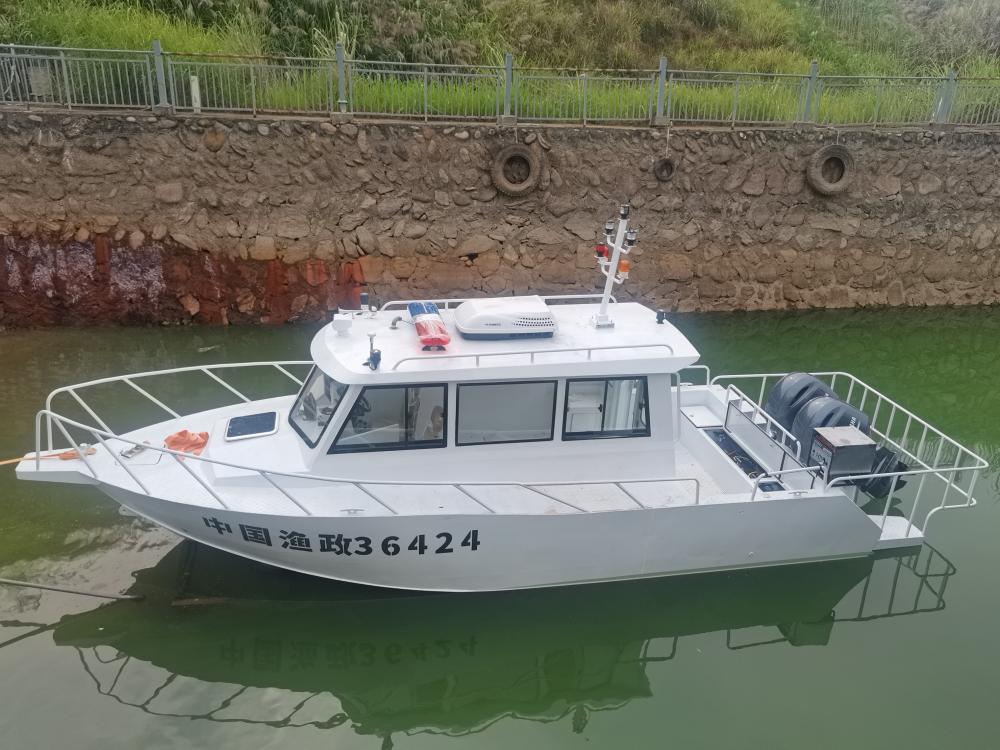

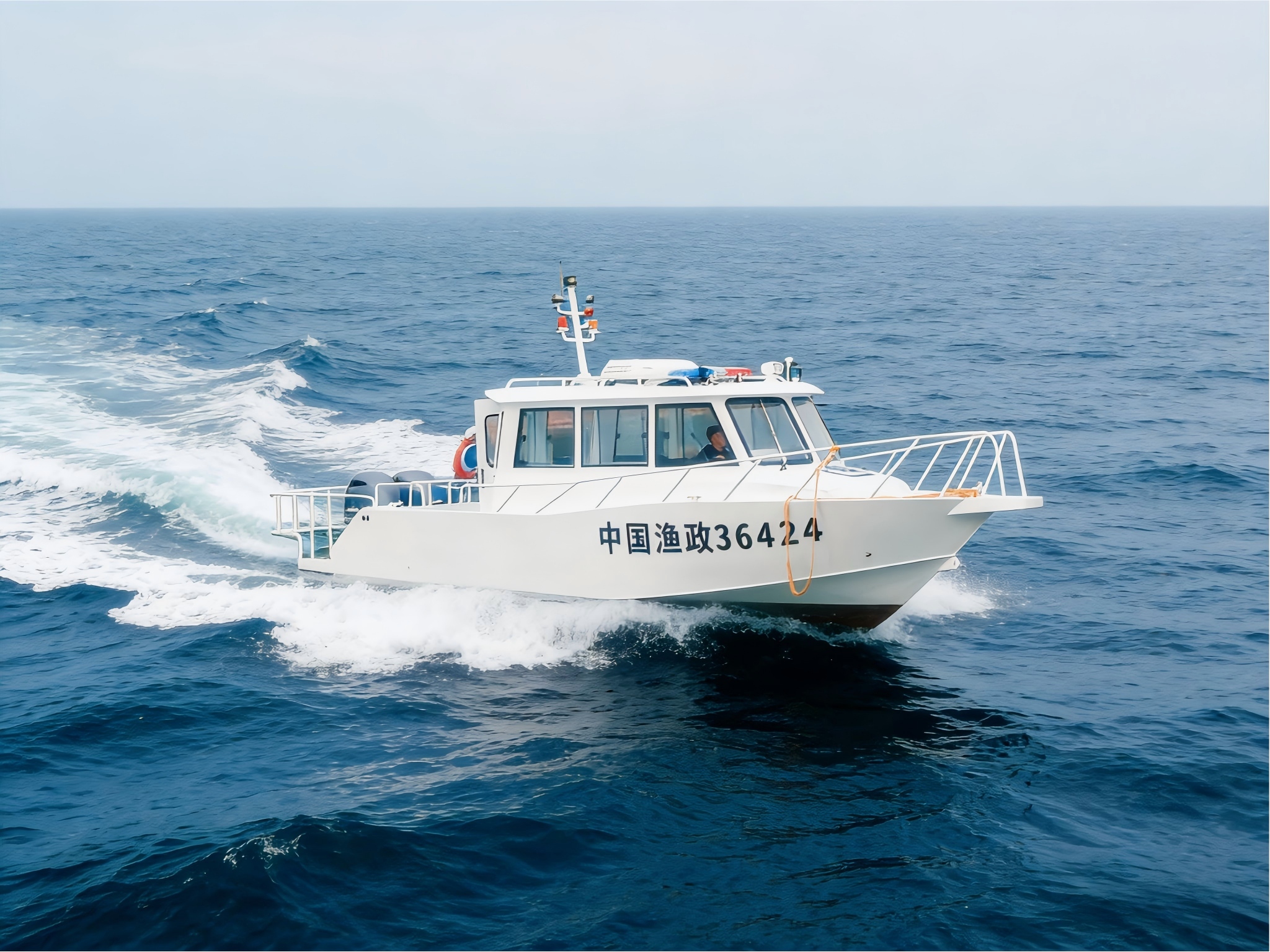

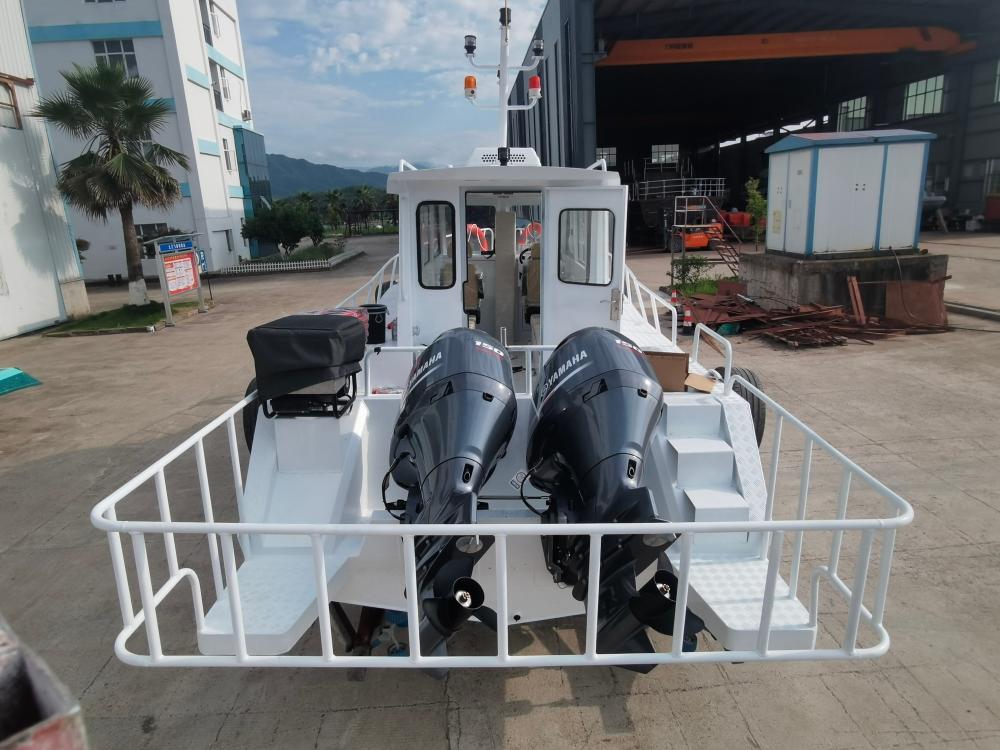

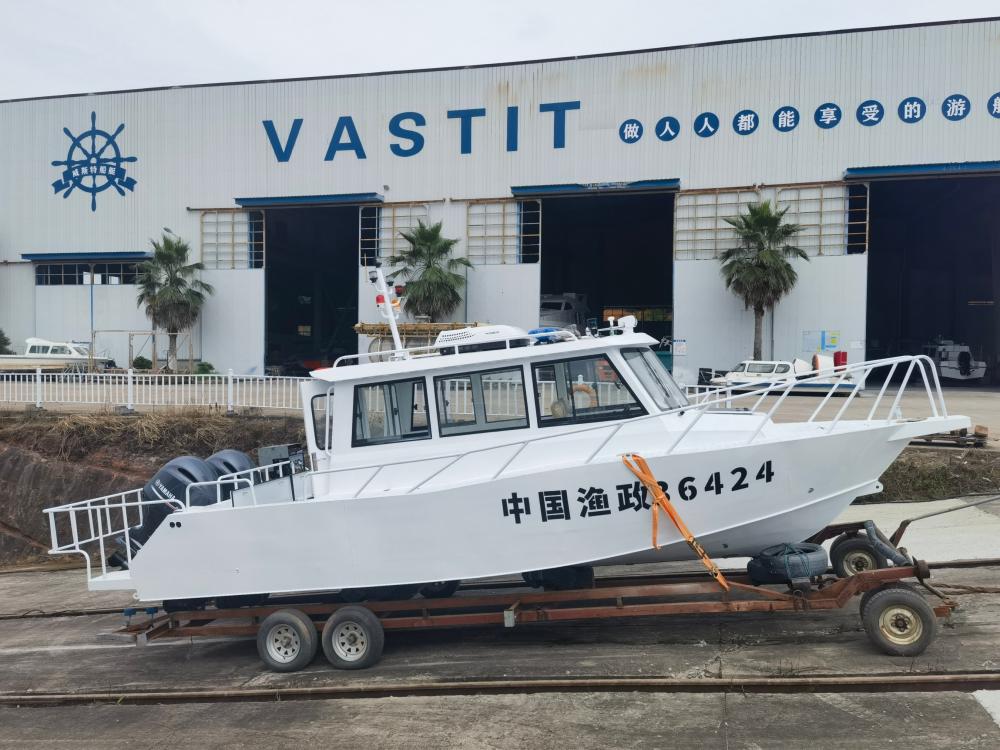

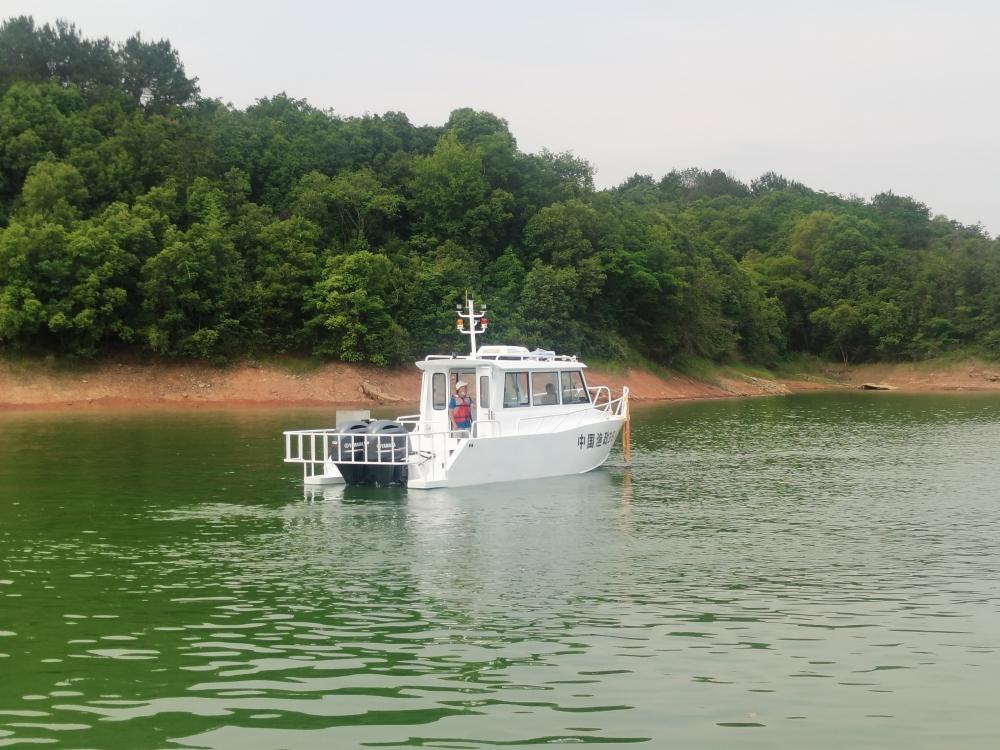

9.8m Aluminum Hull Patrol & Leisure Boat - 2×150HP Yamaha Outboard, 4.5t Displacement with Marine Safety Equipment & Certified Parts

No.

Product Name

Specification/Model

Quantity

Unit

Remarks

1

Main Engine

Yamaha 150HP

2

Unit

Marine Product Certificate

2

Main Engine Control Handle

Customized

1

Set

-

3

Steering Wheel

-

1

Piece

-

4

Waste Oil Barrel

10L

1

Piece

-

5

Garbage Bin

5L

2

Piece

-

6

Fuel Tank

500L

1

Piece

-

7

Hand Pump

-

1

Piece

-

8

Full Ship Piping System & Valves

-

1

Boat Set

-

9

Auxiliary Materials

-

1

Item

-

No.

Product Name

Specification/Model

Quantity

Unit

Remarks

1

High Holding Power Anchor

15kg

1

Piece

Qualification Certificate

2

Anchor Cable

3-strand Polypropylene Rope, φ16mm, Length 50m

1

Root

-

3

Mooring Rope

Length 20m

2

Root

-

4

Mooring Bollard Horn

304 Stainless Steel

4

Piece

-

5

Mooring Bollard

Aluminum Alloy

1

Piece

Self-made by Shipyard

6

Railings

304 Stainless Steel Pipe

1

Item

-

7

Storage Cabinet

Wooden

2

Set

Self-made by Shipyard

8

Rectangular Recessed Watertight Hatch Cover

530×630

2

Piece

Self-made by Shipyard

9

Portable CO₂ Fire Extinguisher

2KG, with Extinguisher Bracket

1

Piece

-

10

Vertical Ladder

A400

1

Piece

Self-made by Shipyard

11

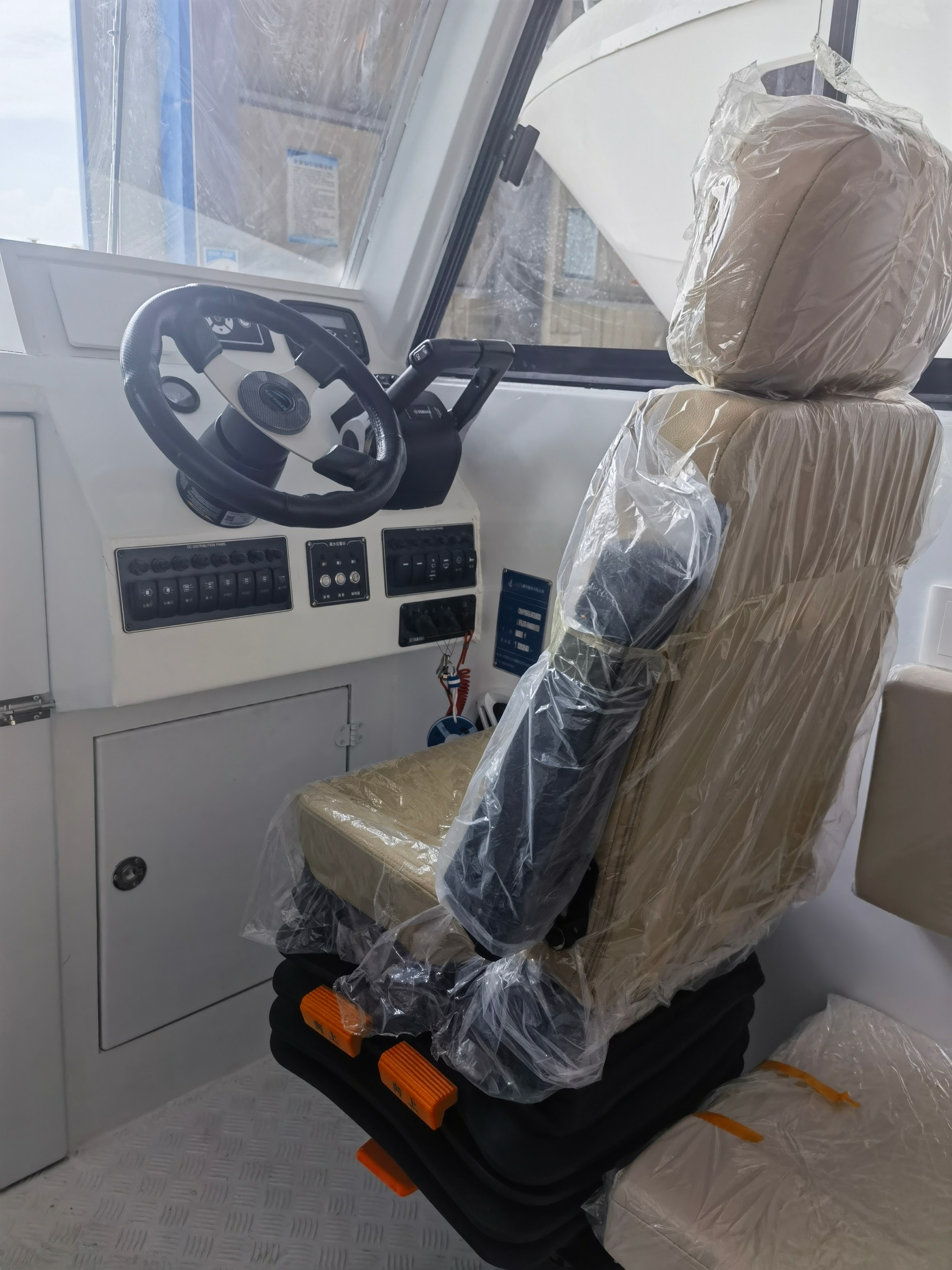

Captain's Chair

Adjustable with Metal Base

2

Piece

-

12

Passenger Sofa

4-5 Person Bench Sofa

2

Piece

Self-made by Shipyard

13

Portable Dry Powder Fire Extinguisher

5KG, with Extinguisher Bracket

2

Piece

Marine Product Certificate

14

Foam Fire Extinguisher

9L, with Extinguisher Bracket

1

Piece

Marine Product Certificate

15

Fire Bucket

With 5m Nylon Rope

1

Piece

-

16

Life Jacket

-

10

Piece

Marine Product Certificate

17

Spare Life Jacket

-

2

Piece

Marine Product Certificate

18

Life Buoy

-

2

Piece

Marine Product Certificate

19

Cockpit Rear Door

Weathertight, Aluminum Alloy Single Door, 700×1650

1

Piece

-

20

Front Windshield

Tempered Laminated Glass

2

Piece

-

21

Side Window

Tempered Laminated Glass

6

Piece

-

22

Black Sphere Shape Mark

-

1

Piece

-

23

Flashlight

-

1

Piece

-

24

Red Flag

-

1

Piece

-

25

White Flag

-

1

Piece

-

26

Sounding Lead

Hammer Weight 5kg, φ8 Fiber Rope Length 35m

1

Set

-

27

Anti-Corrosion Zinc Block (Sacrificial Anode)

B-3 (ZHC5)

2

Piece

-

28

Auxiliary Materials

-

1

Item

-

No.

Product Name

Specification/Model

Quantity

Unit

Remarks

1

Air Conditioner

Midea 1.5P Wall-Mounted

-

-

-

2

Gasoline Generator

5KW

-

-

-

3

Storage Battery

6-QA-150

4

Piece

Marine Product Certificate

4

Battery Isolation Switch

200A, 4-Position

2

Piece

-

5

DC Distribution Board

24V

1

Piece

Marine Product Certificate

6

DC Charging-Discharging Board

DC12V Customized

1

Set

-

7

Shore Power Socket

Waterproof, Single-Phase, AC230V, 32A

1

Piece

-

8

Wheelhouse Console

Including Navigation Power Distribution Board, Main Engine Control Device, etc.

1

-

-

9

Navigation Signal Light Control Board

DC24V/25W

1

Piece

Marine Product Certificate

10

Flash Light Control Board

DC24V/25W

1

Piece

-

11

Lighting Distribution Box

PD6-4/1P4X10A

1

Piece

-

12

Watertight Socket

-

4

Piece

-

13

Portable VHF Radio Telephone

FT-805

1

Unit

Marine Product Certificate

14

Windshield Wiper

12V

1

Piece

-

15

Wheelhouse Lighting

DC24V 5W

8

Boat Set

-

16

Automatic Bilge Pump

TMC2000 80W

1

Unit

-

17

Magnetic Compass

CX-65

1

Piece

-

18

Searchlight

100W

1

Piece

-

19

Signal Mast

Customized

1

Root

Marine Product Certificate

20

Signal Equipment - White Mast Light

-

1

Piece

Marine Product Certificate

20

Signal Equipment - Red Side Light

-

1

Piece

Marine Product Certificate

20

Signal Equipment - Green Side Light

-

1

Piece

Marine Product Certificate

20

Signal Equipment - White Stern Light

-

1

Piece

Marine Product Certificate

20

Signal Equipment - All-Round Light

-

3

Piece

Marine Product Certificate

20

Signal Equipment - Flash Light

-

2

Piece

Marine Product Certificate

20

Signal Equipment - Electric Horn

DC12V 120dB

-

-

-

21

Long-Row Warning Light

With Intercom Function

1

Piece

-

22

Beidou Navigator

XF608

1

Set

-

23

Radio

-

1

Set

-

24

Bilge Water Level High Alarm

DC12V with Sound-Light Alarm

1

Set

-

25

Liquid Level Gauge

DC12V, with Alarm

1

Set

-

26

Lightning Rod

Material: Aluminum Alloy, Diameter: 12mm, Length: 430mm

1

Piece

-

27

Cable

Marine-Grade

1

Boat Set

Marine Product Certificate

28

Auxiliary Materials

-

1

Item

-

No.

Product Name

Specification/Model

Quantity

Unit

Remarks

1

Insulation & Decoration

-

1

Boat Set

-

2

Heat-Insulating Glass Wool

-

1

Boat Set

-

3

Fireproof Board or Aluminum-Plastic Board Decoration

-

1

Boat Set

-

No.

Product Name

Specification/Model

Quantity

Unit

Remarks

-

Ship Inspection Certificate

-

1

Book

-
